CUCKOO
User Manual
CR-0675FW
CR-0675FW User Manual
Name of Each Part
Main Unit
- Detachable cover lever
- Lid
- Steam cap
- Detachable gasket
- Detachable cover
- Inner pot
- Open button
Accessories
- Manual
- Rice scoop
- Measuring cup
- Power cord
ⓘ After cooking or warming, empty the water from the drain dish. Remaining rice water in the drain dish may cause stains.
IMPORTANT SAFEGUARDS
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock do not immerse cord, plugs, or (state specific part or parts in question) in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors (this item may be omitted if the product is specifically intended for outdoor use).
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Save these Instructions.
- Do not immerse in water.
- Risk of electric shock.
- Cook only removable container.
SPECIFICATIONS
| Specification | Sub-category | Value |
|---|---|---|
| Model Name | CR-0675FW | |
| Power Supply | AC 120V(AC Only), 60Hz | |
| Power Consumption | Cooking | 580W |
| Power Consumption | Keeping Warm | 80W |
| Cooking Capacity | WHITE | 1~6 cups |
| Cooking Capacity | WHITE QUICK | 1~4 cups |
| Cooking Capacity | MULTI GRAIN | 1~4 cups |
| Cooking Capacity | GABA | 1~4 cups |
| Cooking Capacity | SCORCHED | 2~4 cups |
| Cooking Capacity | Thick Porridge | 1~1.5 cups |
| Cooking Capacity | Thin Porridge | 0.5~1 cups |
| Power Cord Length | 3 ft (0.9m) | |
| Dimension | Length | 12.75 in (32.3cm) |
| Dimension | Width | 9.4 in (23.8cm) |
| Dimension | Height | 8.5 in (21.5cm) |
| Weight | 8.15lb (3.7Kg) |
SAFETY PRECAUTIONS
- Read the following product safety guide carefully to prevent any accidents and/or serious danger.
- 'Warning' and 'Caution' are different as follows.
| Symbol/Term | Meaning |
|---|---|
| Warning | This means that the action it describes may result in death or severe injury. |
| Caution | This means that the action it describes may result in injury or property damage. |
| Triangle alert icon | This sign is intended to remind and alert that something may cause problems under the certain situation. Please read and follow the instruction to avoid any harmful situation. |
| Circle with line (prohibition icon) | Indicates a prohibition |
| Filled circle with exclamation (instruction icon) | Indicates an instruction |
Warning — Do not
Warning – Do not: Do not use damaged power cord, plug, or loose socket.
Please check the power cord frequently for damage. Serious damage can cause electric shock or fire. If the plug is damaged, contact the dealer or a service center.
Warning – Do not: Do not cover the automatic steam outlet or pressure weight with your hand or face.
It can cause burns. Especially be careful to keep it out of children's reach.
Warning – Do not: Do not use the cooker near hot things such as stove, gas stove or direct ray of light.
It can cause an electric shock, fire, deformation, malfunction, or discoloration. Please check the power cord and plug frequently.
Warning – Do not: Don't spray or put any insecticides or chemicals.
It can cause an electric shock or fire. If cockroaches or any insects get inside the cooker, please call a dealer or a service center.
Warning – Do not: Please pay careful attention against water and chemicals.
It can cause an electric shock or fire.
Warning – Do not: Do not open the top cover while in heating and cooking.
It can cause burns.
Warning – Do not: Use a single socket with the rated current above 15A.
Using several lines in one socket can cause overheating or fire. Please check the power cord and plug frequently. Use an extension cord with the rated current above 15A.
Warning – Do not: Please pay careful attention against water and chemicals.
It can cause an electric shock or fire.
Warning – Do not: Do not use any other metal objects such as aluminum foil on the outer surface of the inner pot.
It can cause an electric shock or fire.
Do not use pots that are not designed for the cooker. Do not use abnormal pot and do not use without the innerpot.
It can cause an electric shock or fire.
Do not clean the product with water or any liquid types.
It can cause an electric shock or fire. If it contacts water, please separate power cord and contact dealer or service center.
Do not use it without the inner pot.
It can cause electric shock or malfunction. Do not pour rice or water without the inner pot. If rice or water gets in then do not turn the product over or shake it, please contact the dealer or service center.
Do not alter, reassemble, disassemble or repair.
It can cause fire, electric shock or injury. For repair, contact dealer or the service center.
Do not cover the automatic steam outlet with a duster, a towel, or apron, etc.
It can cause deformation or a breakdown. It can cause an explosion by pressure.
Do not insert metal objects such as pins and wires or any other external substances in the automatic steam exhaust outlet or any other slot.
It can cause an electric shock or fire. Especially be careful to keep it out of reach of children.
Do not bend, tie, or pull the power cord by force.
It can cause an electric shock or short circuit resulting in fire. Please check the power cord and plug frequently.
Do not put a foreign substance such as a metal stick into the Steam cap or the product. (Extra caution with children.)
It can cause an electric shock or fire.
Remove an alien substance on plug with the clean cloth.
It can cause fire.
The device is not intended for use by anyone (including children) who lacks physical, sensory, mental skills, or experience and knowledge that cannot safely use the device without supervision or instruction.
Don't let children play with the device. It causes electric shock, burns, etc.
Do not change, extend or connect the power cord without the advice of a technical expert.
It can cause an electric shock or fire.
Do not over unplug and plug the power cord over and over.
It can cause an electric shock or fire.
Do not move the product by pulling or using the power cord.
Electric short might cause fire.
Be careful both plug and power cord not to be shocked by animal attack or sharp metal materials.
Damages by impact can cause an electric shock or fire.
Do not use on a rice chest or a shelf.
- Do not press the power code between furniture. It can cause an electric shock resulting in fire.
- When use on furniture automatic steam releasing can cause damage, fire and an electric shock.
Clean any dust or alien substance off the temperature sensor, heating plate and inner pot.
- It can cause a system problem or fire.
Do not press heavy things on the power cord.
- It can cause an electric shock or fire.
Attach the Detachable Cover without fail before you use the product.
- If you use the product without the Detachable Cover, it may cause electric shock, fire, steam leak and a disorder of the product
Do not plug or pull out the power cord with wet hands.
- If you pull the Power Plug out with a wet hand, it may cause electric shock.
- If you excessively pull the Power Plug, it may cause electrical short and electric shock due to a disorder at the Power Cord.
Be careful not to harm your hand when opening the cover.
- Do not leave the cover opened. It might cause accident.
Connect the power connector (Figure 1) to the main body first and then connect the power plug (Figure 2) to the outlet
- It can cause an electric shock or fire
Caution — Do not
When you pull out the power plug, don't pull the power cord. Please, surely pull out the power plug.
- It can cause an electric shock.
Wipe off any excessive water on the cooker after cooking.
- It can cause odor and discoloration. Wipe off water that is left behind from dew.
Please clean the body and other parts after cooking.
- If you cook and warm rice after making a steamed dish, the smell may permeate the rice.
When you clean the product, wash the Inner Pot and the Detachable Cover with neutral detergent, and dry them. Wipe the product with a dry and clean cloth, and dry it.
During warming, close the lid and then connect the power supply.
- It may cause a smell of rice or discoloration.
Be careful with burn due to the steam and heat from the inside of the product immediately after cooking.
To clean the product, wait until it cools down.
- It may cause a burn by touching the heated part.
Insert the power connector into the power plug.
Use the product on the flat surfaces Do not use on a cushion. Please avoid using it on an unstable location prone to falling down.
It can cause malfunction or a fire. Please check the power cord and plug frequently.
Don't use for various purpose for inner pot. And do not heat up the inner pot on the gas stove.
It can cause deformation of the inner pot. It can cause to spill the inner coating.
Do not place on rough top or tilted top.
It can cause burns or breakdowns. Be careful to install the power cord to pass without disruption.
Do not use near wall or furniture. Otherwise wall or furnituremay be damaged, discolored or deformed due to vapor or heat.
When using in drawer cabinet etc, ensure that no vapor entersit.
Recommended type of scrubber to clean the inner pot (inside, outside)
If you do not use a suitable scrubber for cleaning, the inner pot coating may be damaged and peeled off.
| Available | Unavailable |
|---|---|
| Cotton wool, Sponge wool, Microfiber, Mesh wool | Blue, Green scrubber (Abrasive material), Iron, Stain wool, Other metallic materials |
Please use the cooker for it's intended purpose.
It can cause malfunction or smell.
Please contact a dealer or service center when there is a strange smell or smoke.
First pull out the power cord. And contact dealer or the service center.
Use AC 120V only.
It can cause electric shock and fire. It can cause malfunctions.
Please pull out the plug when not in use.
It can cause electric shocks or fire.
Do not touch the metallic surface of the inner pot and heatingplate after cooking or warming
You may get a burn by heat.
Please call customer service if the inner pot coating peels off.
Inner pot coating may wear away after long use. When cleaning the inner pot, do not use tough scrubber, metallic scrubber, brush, abrasive metallic etc.
Do not use the cooker near magnetic field.
It can cause burns or breakdown.
Do not drop or impact the cooker.
It can cause a safety problem. Do not apply excessive force to or drop the product.
Do not fill the Inner Pot for more than its maximum capacity.
It may cause a malfunction leading to issues such as overflow of contents or poor cooking.
If possible, only use warming function when cooking white rice. Other foods are easily discolored.
Take out the Rice shovel before keeping warm.
It may cause odor or discoloration.
NAME AND FUNCTION OF EACH PART / ERROR CORD AND POSSIBLE CAUSE
Name and function of each part
1WARM/REHEAT button
- Use when warm or reheat
2TIMER/LOCK button
- Use when preset time
- Use when button lock
3TIME/SETTING button
- Use when modify timer time
- Use when set GABA and MUTICOOK time
- Use when set warming temperature, customized warming function, customized taste function,
- Use when set 'SCORCHED'
4START/QUICK button
- Use when start cooking
5CANCEL button
- Use when cancel selected function
- (Cancel during cooking, press it for 2 seconds)
6AUTO CLEAN button
- Use when operate Auto Clean
7MENU/SELECT button
- Use when select WHITE RICE, WHITE RICE QUICK, MULTI GRAIN, GABA RICE, SCORCHED, MULTI COOK, PORRIDGE, BABY FOOD, AUTO CLEAN
8Display
- Shows current mode and settings including STICKY, SOFT, SAVORY, COOKING, TIMER, WARM, REHEAT, WHITE, QUICK, MULTIGRAIN, GABA, SCORCHED, MULTICOOK, PORRIDGE, BABY FOOD, AUTO CLEAN
Standby mode notes
- After plug the power cord and do nothing, display will show as above which indicate that the appliance is in 'Standby' mode.
- (Menus on 'Standby' mode display may differ as per customer setting)
- Press 'Cancel' button to enter 'Standby' mode.
- Press the button until you hear the buzzer sound. The image of display may different with actual display.

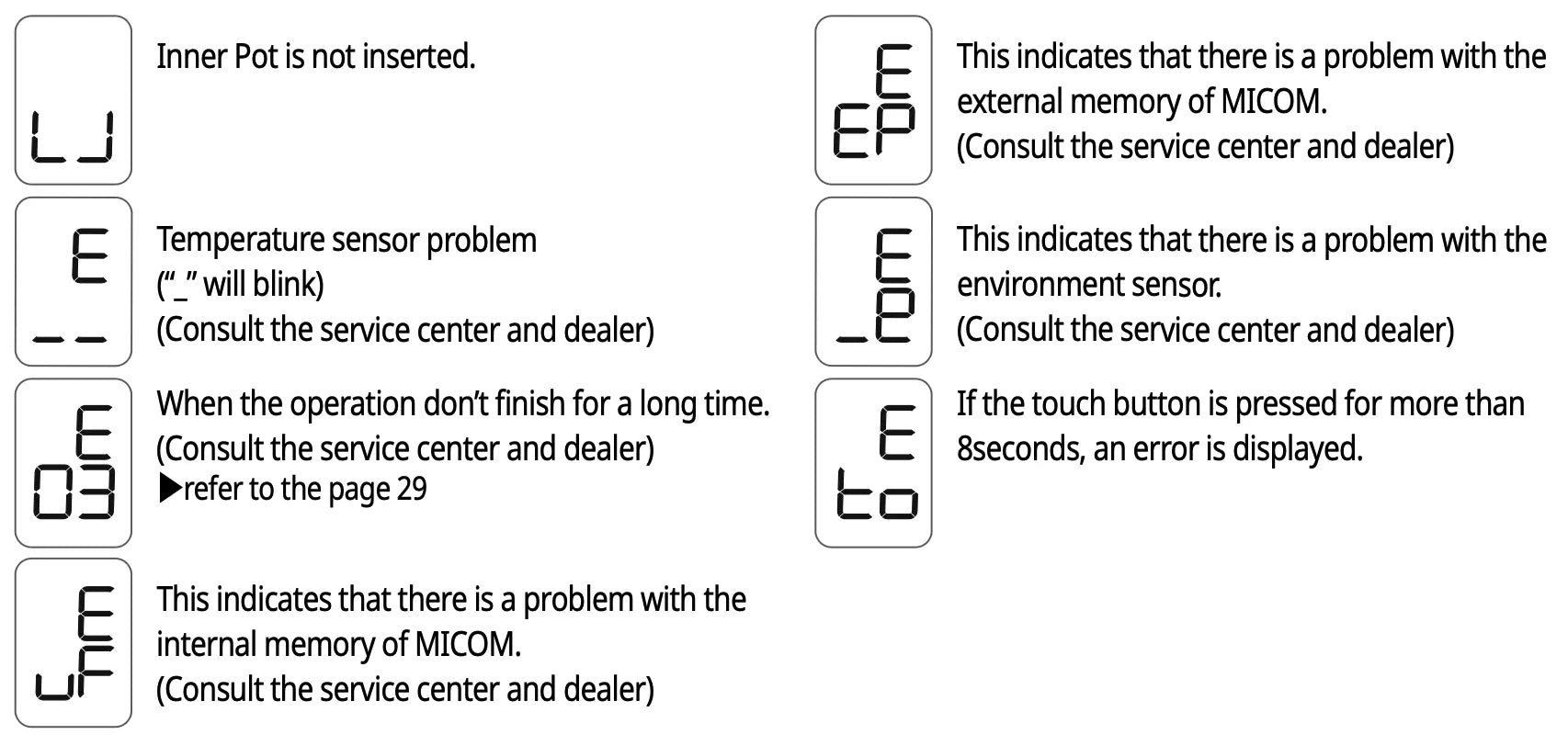

Error Code and Possible Cause
When the appliance has any problem or incorrectly used, below marks will show up.
| # | Possible Cause |
|---|---|
| 1 | Inner Pot is not inserted. |
| 2 | Temperature sensor problem ("_" will blink) (Consult the service center and dealer) |
| 3 | When the operation don't finish for a long time. (Consult the service center and dealer) |
| 4 | This indicates that there is a problem with the internal memory of MICOM. (Consult the service center and dealer) |
| 5 | This indicates that there is a problem with the external memory of MICOM. (Consult the service center and dealer) |
| 6 | This indicates that there is a problem with the environment sensor. (Consult the service center and dealer) |
| 7 | If the touch button is pressed for more than 8seconds, an error is displayed. |
HOW TO COOK
- Press the "MENU/SELECT" button to select your desired cooking mode.
- Whenever the Menu/Selection button is pressed, the cooking options will be highlighted in sequential order from WHITE RICE → WHITE RICE QUICK → MULTI GRAIN → GABA RICE → SCORCHED → MULTI COOK → PORRIDGE → BABY FOOD → AUTO CLEAN.
- After WHITE RICE, MULTI GRAIN, GABA RICE settings have been used, your appliance will memorize your preference. Skip this step and press START/QUICK.
ex) Selection of WHITE rice
- Press the "START/QUICK" button to start cooking
- Press the TIME/SETTING button while WHITE RICE or MULTI GRAIN is selected, you can set your customized rice preference.
ex) Cooking WHITE rice
- Rice Steaming (ex : WHITE RICE)
- When a number appears on the display it indicates how much time is left in the cooking cycle. The time generally indicates that it has started the rice steaming process and will finished in the time displayed.
- The finish time may vary depending on the menu.
- Completion
- When cooking is completed, the cooker will beep and the KEEP WARM function will start.
- When cooking is complete, fluff the rice using the rice scoop. This will allow the rice to release the additional moisture and prevent odors from occurring as well discoloration.
| Category | WHITE RICE | WHITE RICE QUICK | MULTI GRAIN | GABA RICE | SCORCHED RICE | Thick Porridge | Thin Porridge | BABY FOOD | MULTI COOK | AUTO CLEAN |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 1~6 Persons | 1~4 Persons | 1~4 Persons | 1~4 Persons | 1~4 Persons | 1~1.5 Cups | 0.5~1 Cups | Up to 'WHITE rice' water level 2 line | ||
| Cooking Time | Approx. 36~54 Min | Approx. 28~36 Min | Approx. 58~63 Min | Approx. 63~87 Min | Approx. 49~63 Min | Approx. 63~72 Min | Approx. 55~74 Min | Approx. 24 Min |
How to use the cooking menus
| Menu | Description |
|---|---|
| WHITE RICE | For short grain White Rice. |
| MULTI GRAIN | When you cook long rice or brown rice |
| GABA RICE | It is used when you want to eat brown rice or germinated brown rice. |
| SCORCHED RICE | For scorched rice. |
| MULTI COOK | To cook porridge, soup, tea, etc. by using the low temperature cooking function. |
| Porridge | It is used to cook various kinds of porridge. |
| BABY FOOD | To make a variety of Baby Food. |
| AUTO CLEAN | When removing any smells or sterilizing your appliance after cooking or warming. |
| WHITE RICE QUICK (Turbo function) | · To shorten the cooking time, select the WHITE RICE QUICK MENU or Press the START/QUICK button twice when select WHITE RICE MENU. (It takes 26~28 minutes to cook 2 servings of White Rice). · For the best results, it is recommended to presoak the rice for about 20 mins before cooking. · In Turbo Glutinous Rice mode, the preset function is not available. |
※ Be sure to empty the dew dish located on the back side of the appliance after cooking.
The Searing Effect
When cooking the rice, it can become slightly yellow at the bottom of the Inner Pot, but this is normal. This is more prevalent in the "Preset" than just using the regular cooking options. It does not mean the appliance is defective.
How to use Automatic Steam Cleaning function?
Add water to level 2 and then close the cover.
Methods to activate Automatic Steam Cleaning
- Method 1. Select the Automatic Steam Cleaning menu by pressing "Menu/Selection" button, and press "START/QUICK" button.
- Method 2. Press the "Auto Clean" button in standby mode, and press "START/QUICK" button.
Troubleshooting
▼ In case the appliance does not work properly, check the following lists before consulting the dealer and service center.
| Symptoms | Things to check | Possible solution |
|---|---|---|
| Rice is not cooked | • Did you press the START/QUICK button? | • Make sure that "[ _ ]" appears on the display by pressing the START/QUICK button after selecting the desired mode. |
| • Were there any problems of electricity such as a blackout? | ||
| Rice is half-cooked or layered. | • Did you use the measuring cup? | • Add the amount of water that is equal to the half amount of the one water level scale. |
| • Did you measure the appropriate amount of water? | ||
| • Did you rinse the rice properly? | ||
| • Did you presoak the rice for too long before cooking? | ||
| • Was the rice too dry? | ||
| Beans (Mixed Rice) are half-cooked. | • Were the beans (Mixed Rice) too dry? | • Presoak the beans(Mixed Rice) before cooking and use the Mixed Rice/Brown Rice mode. Some kinds of grains can be half-cooked. |
| If rice is overcooked or too starchy. | • Did you select the correct mode? | • Select the desired mode correctly. |
| • Did you measure the appropriate amount of water? | • Measure the appropriate amount of water. | |
| • Did'nt you open the lid during the steaming stage? | • Do not open the lid until the steaming stage is over. | |
| If water overflows during cooking. | • Did you use the measuring cup? | |
| • Did you measure the appropriate amount of water? | ||
| • Did you select the correct mode? | ||
| When it smells during warming. | • Is the lid closed in a correctr way? | • Close the lid completely. |
| • Was the Power Plug plugged into the outlet during warming? | • Keep the appliance plugged during warming. | |
| • Was the Warm mode on over 12 hours? Was the amount of rice too small? | • Keep the warming time less than 12 hours. | |
| • Is there a rice paddle or cold rice in the Inner Pot during warming? | • Do not warm cold rice or other kinds of food. | |
| " E _ _ " is displayed. | • "E _ _" indicats that there is a problem with the Temperature Sensor. | • Unplug the appliance and consult the dealer and service center. |
| Warming time blinks during warming. | • Has it been 24 hours since the time you set the Warm mode? | • The warming time on the screen blinks after 24 hours of warming. |
| If brown rice is not properly germinated. | • Did you germinate the brown rice over the specified capacity? | • Cook appropriate amount of brown rice within the specified capacity. |
| • Did you use dried brown rice? | • Dried or contaminated brown rice might not be germinated properly. |
▼ In case the appliance does not work properly, check the following lists before consulting the dealer and service center.
| Symptoms | Things to check | Possible solution |
|---|---|---|
| " L J" appears on the screen. | • Is the Inner Pot in the right position? | • Place the Inner Pot in the appliance. |
| • Is the voltage of the plug 220V? | • This appliance is for 120V. Plug in the appliance accordingly. | |
| Rice is too scorched. | • Are there any foreign substances such as rice grains on the surface of the Inner Pot or the Temperature Sensor? | • Remove any foreign substances from the outer surface of Inner Pot and the Temperature Sensor. |
| • Haven't you set the "Customized Cooking" or "Customized Rice Taste" function? | • If necessary, cancel the "Customized Cooking" or "Customized Rice Taste" function before cooking. | |
| Unpleasant smells occur after cooking or during warming. | • Did you clean it after cooking? | • Please clean it after cooking. • Wipe the lid and the steam cap clean before using it. |
| "Ticking" sounds is heard during cooking, warming or reheating. | • Is it the sound from the cooking relay? | • The "ticking" sound is normal if it comes from the relay. |
| • Did you remove any water or moisture from the outer surface of the Inner Pot? | • The wet outer surface of the Inner Pot can cause "ticking" sound. Make sure to wipe out any water or moisture before inserting the Inner Pot. | |
| "E_P" appears on the screen. | • "E_P" indicates that there is a problem with the environment sensor. | • Unplug the appliance and consult the dealer and customer service. |
| "EuF" appears on the screen. | • "EuF" indicates that there is a problem with the internal memory of MICOM. | • Unplug the appliance and consult the dealer and customer service. |
| "E03" appears on the screen without cooking being finished for a long time. | • Did you plug the appliance into 220V outlet? | • "E03" on the screen indicates that the appliance is not properly functioning due to a problem such as a disconnection of the heater or shortage of power. Unplug the appliance and consult the dealer and customer service center. • "E03" appears on the screen when only water is boiled for a long time. • This appliance is only compatible with the 120V power outlet. Use it accordingly. |
| When the button is not pressed | • Have you set the button locked? | • Press the TIMER/LOCK button for at least 2 seconds to unlock the button. |
| When the lid cannot be closed | • Have you attached the inner lid? | • Attach the inner lid. |
| If steam comes out of the lid | • Are there any residues adhering to the packing? | • Use the packing after wiping it with a soft cloth. • Keep the surroundings of the packing clean. |
CUCKOO ELECTRIC RICE COOKER/WARMER LIMITED WARRANTY
KEY Company, P&K USA TRADING CORP and Cuckoo Trading Canada. will repair at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use, during the warranty period listed below from the data of original purchase. This warranty is good only to the original purchaser of the product during the warranty period. P&K USA TRADING CORP covers the east and the central districts, KEY Company covers the west and the central districts, Cuckoo Trading Canada covers the whole Canada.
WARRANTY PERIOD
| MODEL# | #LABOR | PARTS | HOW SERVICE IS HANDLED |
|---|---|---|---|
| CR-0675FW Series | 1YEAR | 1YEAR | The East and the Central Districts. Call: 718-888-9143, 718-888-9144 Address: 5-48 46th Rd. Long Island City, NY 11101 The West and the Central Districts. Call: 323-780-8808 ext 114 Address: 1137 E. 1st St, Los Angeles CA 90033 Canada (TORONTO) Call : 416 878 4561 / 905 707 8224 Address : #D8-7398 Yonge Street Thornhill Ontario Canada L4J 8J2 Canada (VANCOUVER) Call : 604 540 1004 / 604 523 1004 Address : 945 Lougheed Hwy Coquitlam BC Canada V3K 3T4 |
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. CUCKOO ELECTRONICS CO.,LTD, SHALL NOT BE LIABLE FOR THE LOSS THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts : so these limitations or exclusions may apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY IN THESE CASES:
- To damages problems which result from delivery or improper installation.
- To damages problems which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage.
- To serve call which do not involve defective workmanship or material and explaining the operation of the unit.
Therefore, these costs are paid by the consumer. Customer assistance numbers :
To Prove warranty Coverage : ▶ Retain your Sales Receipt to prove data of purchase ▶ Copy of your Sales Receipt must submitted at the time warranty service is provided.
To Obtain Product, Customer, or Service Assistance and Nearest Authorized service center, Parts Distributor or Sales Dealer:
| Region | Contact |
|---|---|
| The East and the Central Districts | Call : 718 888 9144 Address : 129-04 14th Avenue College Point, NY 11356, USA |
| The West and the Central Districts. | Call : 323 780 8808 Toll Free : 877 481 9828 Address : 1137 E. 1st Street, L.A, CA 90033, USA |
| Canada (Toronto) | Call : 416 878 4561 / 905 707 8224 Address : #D8-7398 Yonge Street Thornhill Ontario Canada L4J 8J2 |
| Canada (Vancouver) | Call : 604 415 9858/604 524 8282 Address : 103-4501 North Road Burnaby BC Canada V3R 4R7 |
Z0383-0065C1 Rev.0
